STRENGTH OF A GATCH
GATCH is more rigid than conventional plywood and formwork, and
is highly resistant to impacts and heat.
It is resistant to damage even in tests where it is subjected to strong impacts from a hammer, and even
when subjected to loads that would cause plywood to bend significantly, there is little deformation,
and even when it is burned for seven minutes with an open flame, there is no change other than charring.
Through these various tests, it has been confirmed that GATCH is a material
that is resistant to rigidity, impact and heat.
How to use
Assembly in 30 MM increment
With GATCH, you can create a formwork just by combining a few parts like a puzzle.
Conventional methods required cutting the panels to length to suit the site.
But with GATCH, this is no longer necessary, so work time and efficiency are greatly improved.
Combine with Plywood Panel
GATCH can be used in combination with traditional plywood panels,
Which can help reduce costs. It is also useful when used in key areas
OVERTURN THE CONVENTIONAL
Conventional formwork inevitably requires the time and effort of cutting plywood,
hammering nails and separating them during dismantling.
However, with the prefabricated unit formwork “GATCH”, the concrete formwork can
be assembled into a unit, including the corner fittings,
reducing the time and effort required for processing and assembly on-site.
Furthermore, since there is little need for processing parts, less waste is produced,
making construction more environmentally friendly.
01
Significant Cost Reduction
Even people with little experience
can use it, so work efficiency can be greatly improved.
Since no waste is produced during construction,
costs can also be reduced.
02
Beautiful Finishing
It can handle inside and outside corners in 3 dimensions,
allowing you to finish
the shape neatly. By combining parts with 30mm dimensional units, it can be applied to walls, slabs, columns and beams.
03
Can be used many times
The FRP material used in GATCH has high durability. Plywood panels deteriorate
due to repeated
drying and wetting.
GATCH material
does not deteriorate,
so it maintain
its original strength even after many years.

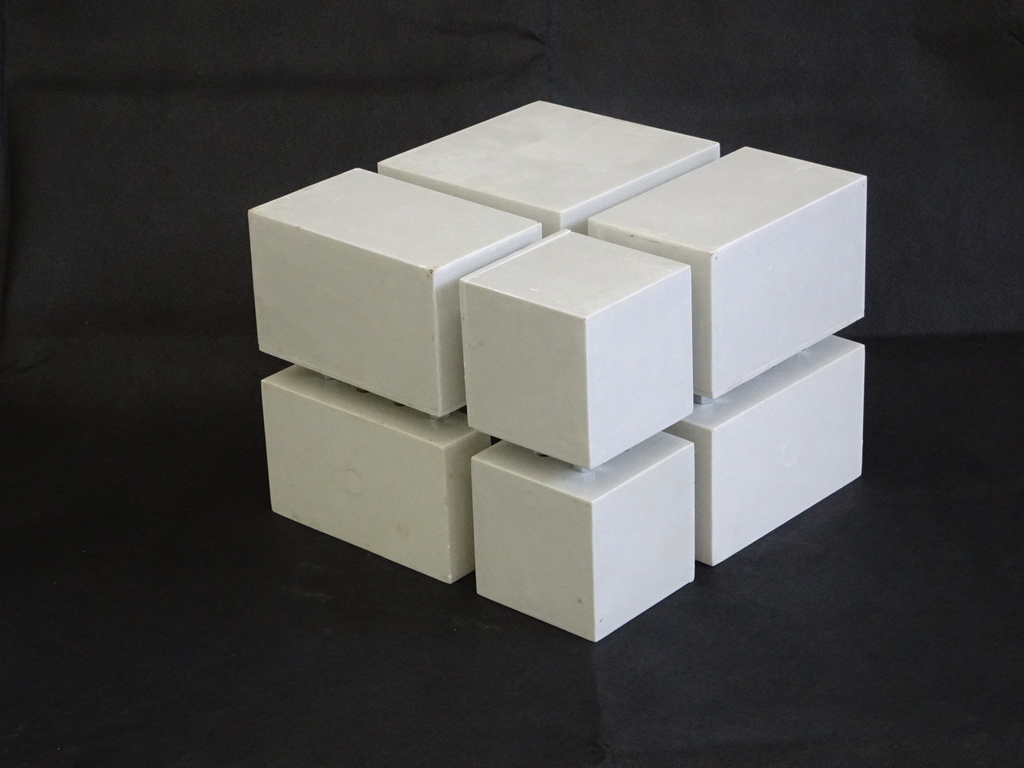

3-Sided Corner

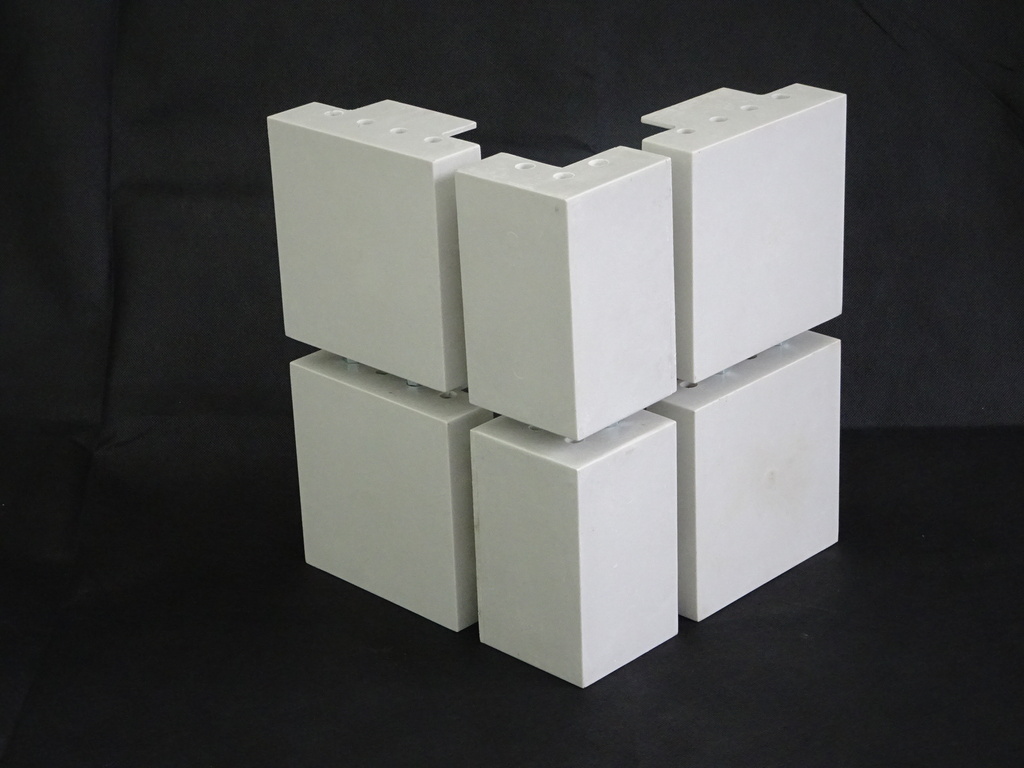

2-Sided Corner

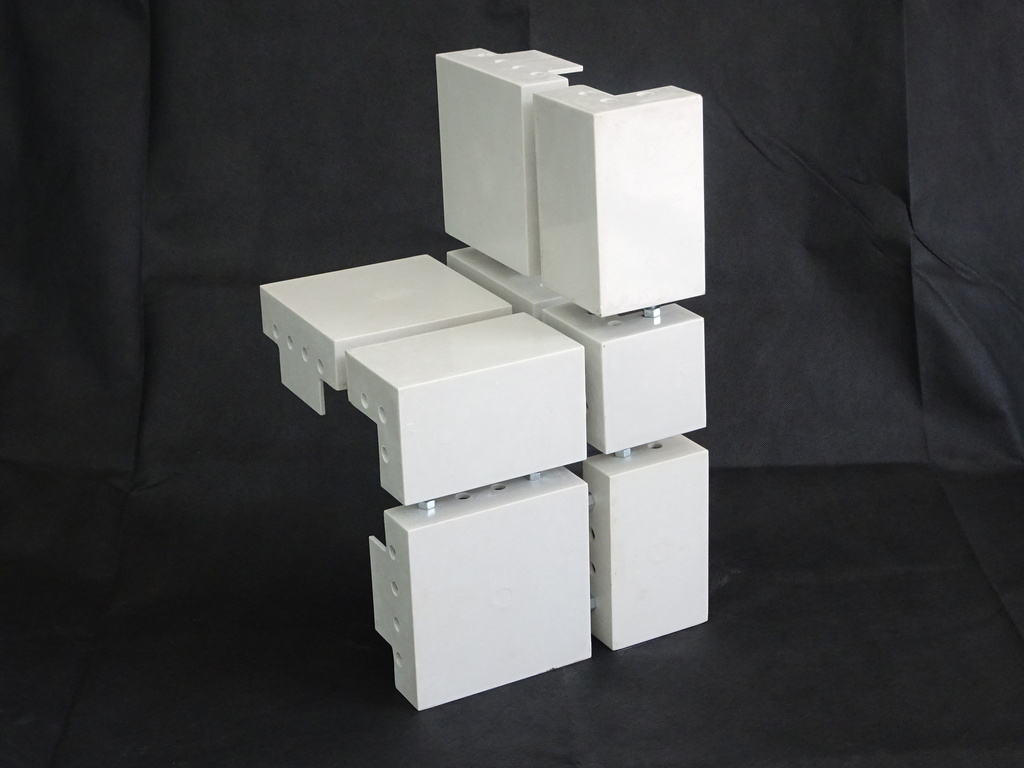

2-Sided and 1-Sided Corner
2-Sided Corner
PRECAUTIONS
⚫ Please apply a release agent (mold release agent) before use
⚫ In areas subject to large pressure, please perform
strength calculations to ensure safety.
⚫ As this is a plastic product, please be careful of fire.
⚫ We recommend using a high-pressure washer to
remove concrete and slag.
⚫ Avoid removing slag with a metal spatula.
⚫ When lifting, using a backing plate to protect the corners
where the wire will come to contact.
⚫ When stacking, take measures to prevent collapse, such as
inserting crosspieces, as the ribs are thin and prone to
to collapse.
⚫ Please be careful when handling the product as it will be
damaged if you pry it open with a crowbar or other object.
⚫ Please take into consideration “joint stretch” depending
on the number of pieces connected.
