EDACHE SS-05 SOIL STABILIZER
FARM TO MARKET ROADS


DESCRIPTION:                          Liquid polymer that helps bind soil
                                                      for better compaction
APPEARANCE:                          Free-flowing dark brown liquid
ODOR:                                        Odorless
SHELF LIFE:                                2 years from manufacturing date
                                                      Original packaging
SPECIFIC GRAVITY:                  1.19 ± 0.01
FLAMMABILITY:                        Non combustible
RECOMMENDED STORAGE: Ambient temperature not more than
                                                      40°C
                                                      Avoid direct exposure to sunlight

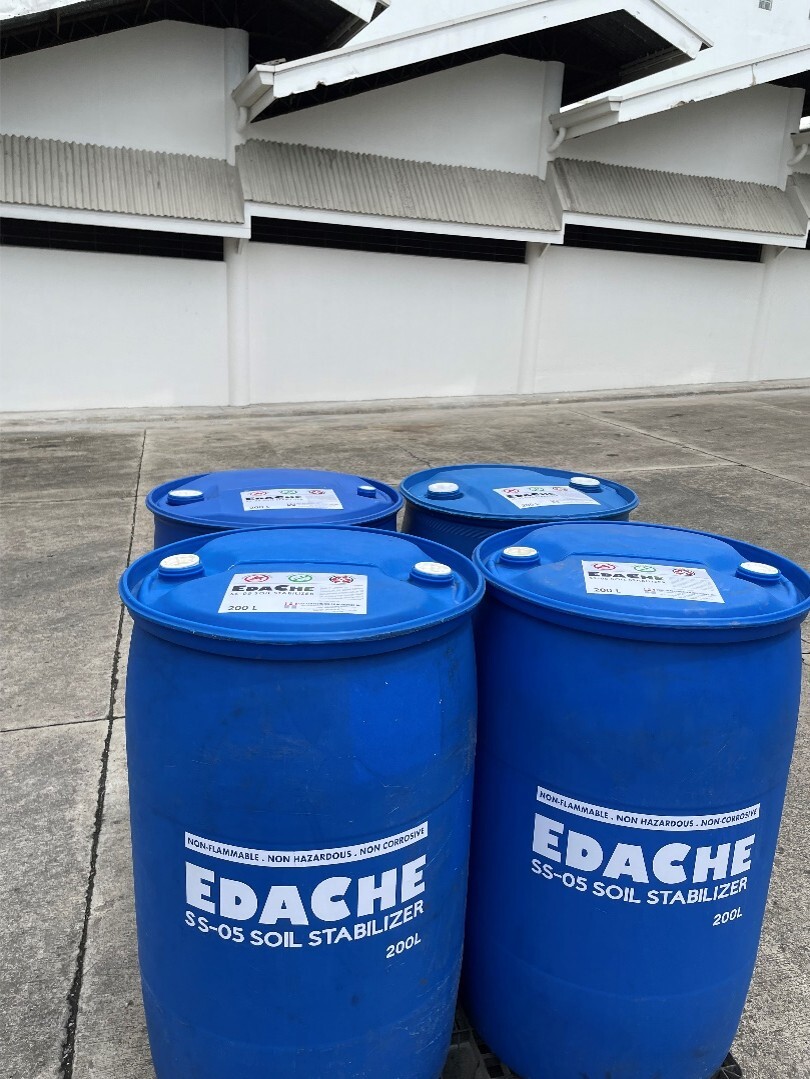

PACKAGING:                              20 L OR 200 L

CHARACTERISTICS:                Non-corrosive
                                                     Non-flammable
                                                     Non-allergic
                                                     Dries odorless
                                                     Biodegradable
                                                     Environmentally safe
COVERAGE:                              200 L
                                                     AREA:      5,000 SQM
                                                     DEPTH:       150 MM
PREPARATION:                       Check the moisture content of the soil
                                                     to be treated as basis for the dilution
                                                     ratio
MIXING RATIO:                        1:5 UP TO 1:10 polymer to water

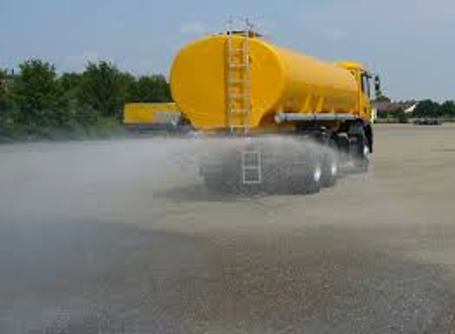

EQUIPMENT:                            1)  Water Truck with Spray Valve

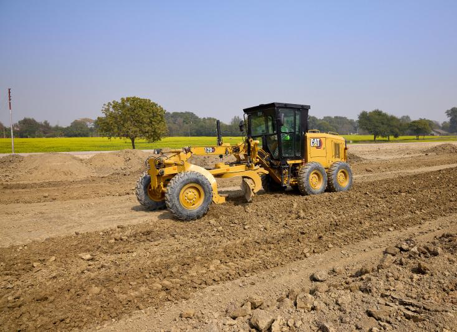

                                                     2)  Motorized road grader or
                                                           Rotary Mill

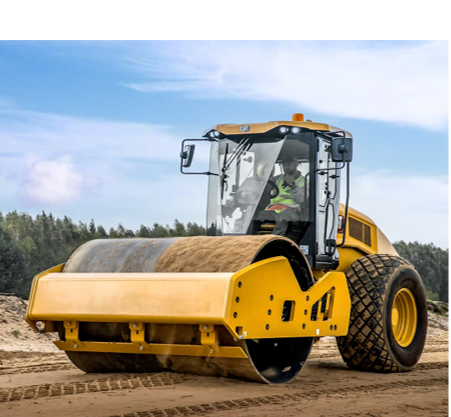

                                                     3)  Vibratory Compact Roller
                                                           (Minimum 10 MT load)
MANPOWER:                           4 pax
WEATHER LIMITATIONS:      Heavy rains
                                                     Bad weather conditions

STEPS IN THE APPLICATION OF EDACHE SS-05

1.0  Calculate the area that will be covered by the application.

2.0  Scarify the soil.
       Roadways should be free from foreign debris such as roots, plastics, etc.

3.0  Reduce the lumps.
       Soft spots must be eliminated.


‌4.0  Mix EDACHE SS-05 with water based on the recommended ratio in the
        water truck until homogeneous.

5.0  Spray EDACHE SS-05 soil stabilizer mixture on the scarified soil.


‌6.0  Mix the soil using the motorized road grader.

7.0  Compact the soil up to.e maximum 95% with a vibratory compact roller.

8.0  Allow the treated soil to cure for 24 hours.

STABILIZED SOIL IS PASSABLE AFTER 3 HOURS CONSIDERING GOOD WEATHER CONDITION.
